Anchor rod RG M

The fischer threaded rod with chamfer.

The fischer anchor rod RG M is a system component for use with the fischer resin capsules RSB and RM II and the fischer injection mortars FIS SB, FIS EM, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green. Due to the oblique edge, it is particularly suitable for use with the resin capsules RSB and RM II. The extensive assortment in diameters M8 - M30 and in different steel grades enables extremely diverse applications. The system is particularly suitable for the cost-effective fixation of railings, steelwork constructions, and advertising systems both inside and outside. The RG M is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions. During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated. The approvals of the various resin capsules and injection mortars must be observed.

To all Variants
Product Picture

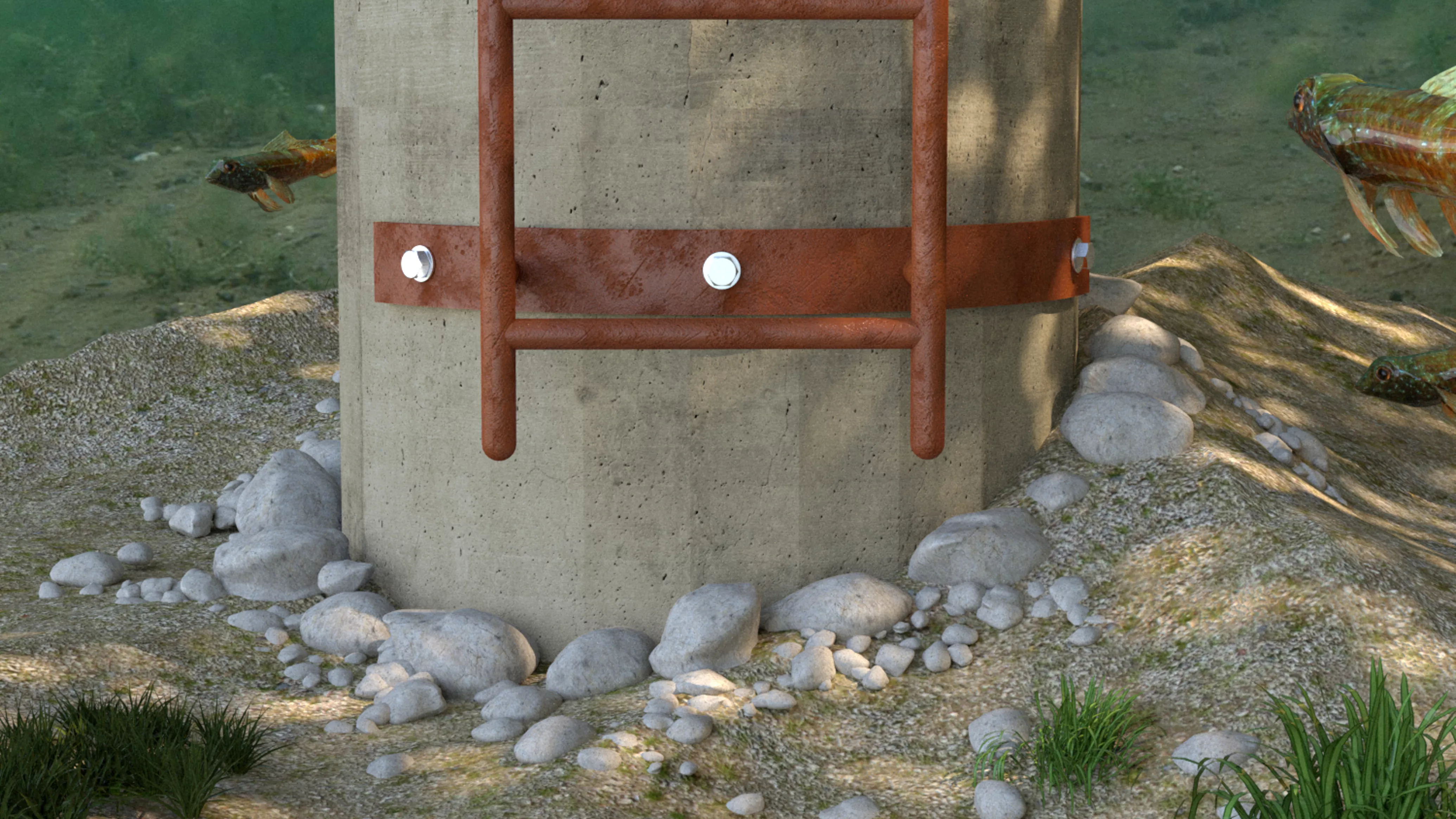

Application Image

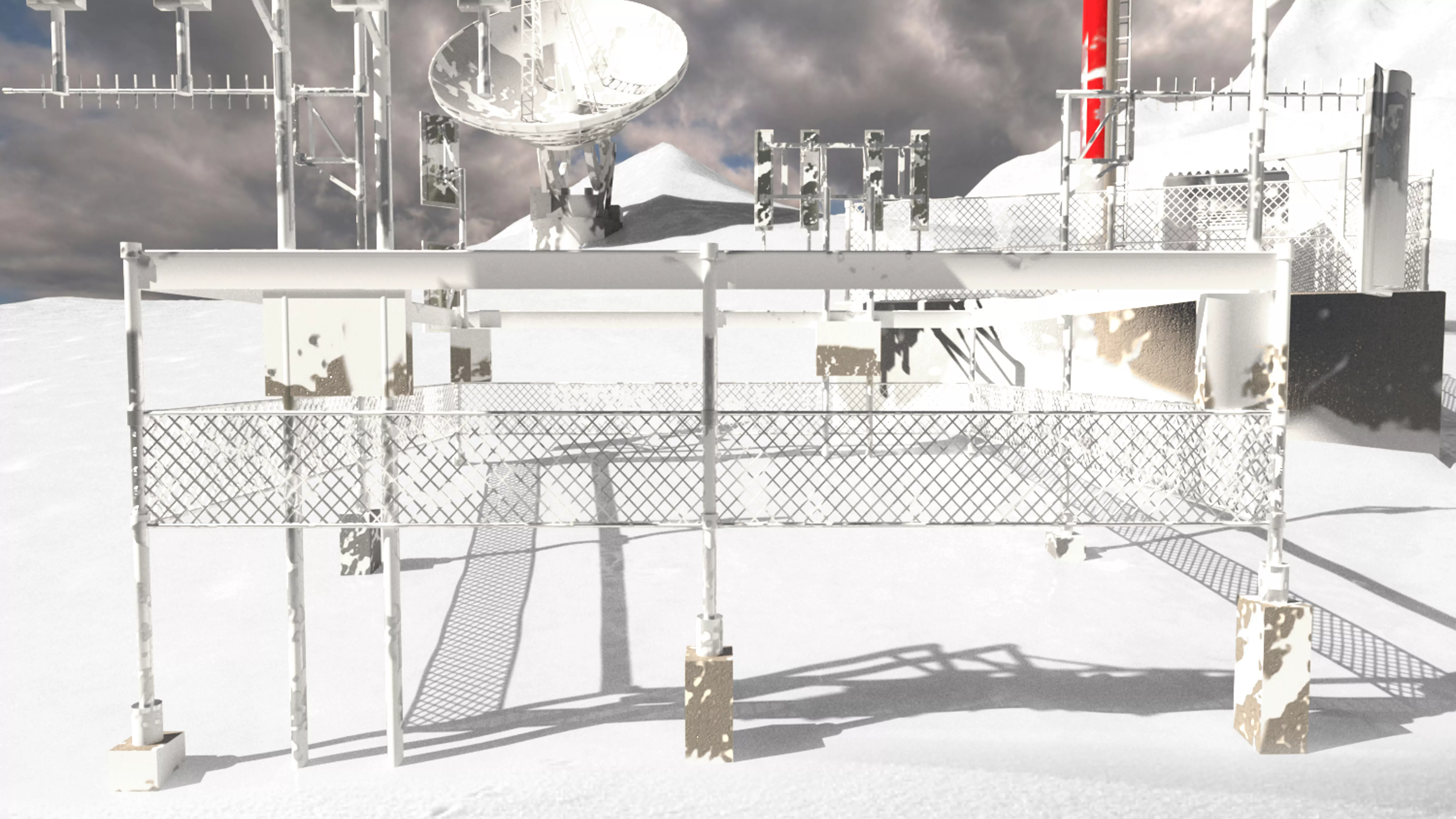

Application Image
Application Image
Product Picture
Application Image
Application Image
Application Image
1   1

Product Description

Advantages
  • The wide range of the RG M from M8 to M30 opens up a wide range of applications and therefore offers great flexibility.
  • The wide range of approved steel types for RG M allows for use in all corrosion resistance classes and offers the best possible application safety.
  • Please refer to the approvals for the resin capsules and mortar used.

Available Product Variants

Variant
ETA dyn
Drill diameter
Max. fixture thickness
Thread
Price/pack
RG M10x130 5.8 ZP ANCHOR ROD
Art-Nr. 50257

12 mm

56 mm

M10

2041.00 1148.00 ₹

RG M12x160 5.8 ZP ANCHOR ROD
Art-Nr. 50258

14 mm

74 mm

M12

3133.00 1452.00 ₹

RG M16x165 5.8 ZP ANCHOR ROD
Art-Nr. 50287

18 mm

65 mm

M16

4815.00 2244.00 ₹

RG M16x190 5.8 ZP ANCHOR ROD
Art-Nr. 50259

18 mm

90 mm

M16

6039.00 2640.00 ₹

RG M20x260 5.8 ZP ANCHOR ROD
Art-Nr. 50260

25 mm

146 mm

M20

12403.00 5280.00 ₹

Legend = Permission Available — = Permission not Available

Application and Permission

Applications
  • Anchorings with resin capsule RSB and RSB mini
  • Anchorings with resin capsule RM II
  • Anchorings with each of the fischer injection mortars such as FIS SB, FIS EM Plus, FIS EB II, FIS V, FIS VL, FIS V Zero, FIS P Plus, FIS P, FIS EP and FIS Green
Building materials
  • In connection with the fischer resin capsules approved or suitable for cracked and non-cracked concrete.
  • In connection with several fischer injection mortars approved or suitable for different building materials.

* You can find detailed information on building materials in the registration document.

Permissions

ETA-02/0024 ETA-19/0501 ETA-20/0603 DoP No. 0756-CPD-0300

For Details see corresponding Documents

Assembly Instruction

Functionality

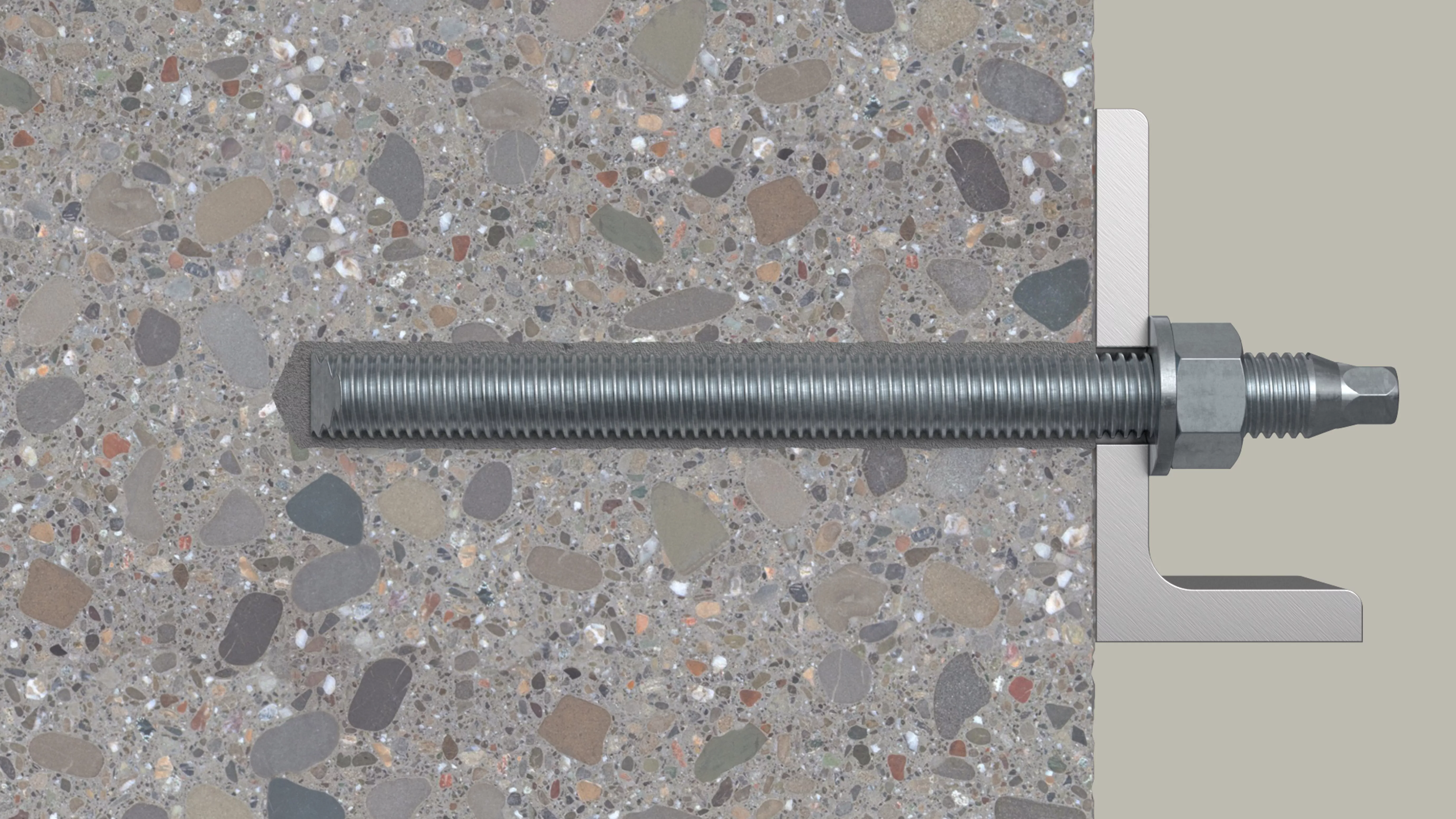

  • Due to its oblique edge, the anchor rod RG M is particularly suitable for use in conjunction with resin capsules.
  • The anchor rod RG M is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
  • During setting, the oblique edge of the RG M destroys the capsule, and mixes and activates the mortar.
  • Use with injection mortar is also possible. Here, the anchor rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.

Documents for Downloading

Approvals

Title Type Created Valid Till
ETA Certification Document European Technical Assessment for Injection System fischer FIS V - Bonded anchor for use in concrete ETA-02/0024 13/05/2020
ETA Certification Document European Technical Assessment for fischer Superbond dynamic - Post-installed fasteners in concrete under fatigue cyclic loading ETA-19/0501 11/06/2024
ETA Certification Document European Technical Assessment for Injection System fischer FIS V Plus - Bonded anchor for use in concrete ETA-20/0603 13/11/2020
DOP - Declaration of Performance Declaration of Performance for fischer Resin anchor R DoP No. 0756-CPD-0300 14/05/2013 14/05/2028

System Components & Related Categories

System Components

Hammer drill bit Quattric II

Product Picture

Hammer drill bit Quattric II

The expert for the best performance in reinforced concrete

More Information
