fischer Threaded Rod FIS AM 12X1000 gvz 1 m length steel grade 8.8

The FIS A versatile rod anchor

Price : 9345.60 ₹
Available Product Variants
Top Features
  • The universal solution for various fischer injection mortars. This lowers complexity and simplifies storage.
  • Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various fischer injection mortars.
  • Optimum load adaptation due to variable anchorage depths. This lowers installation and material costs.
  • Metre-long units, cut to length as required.

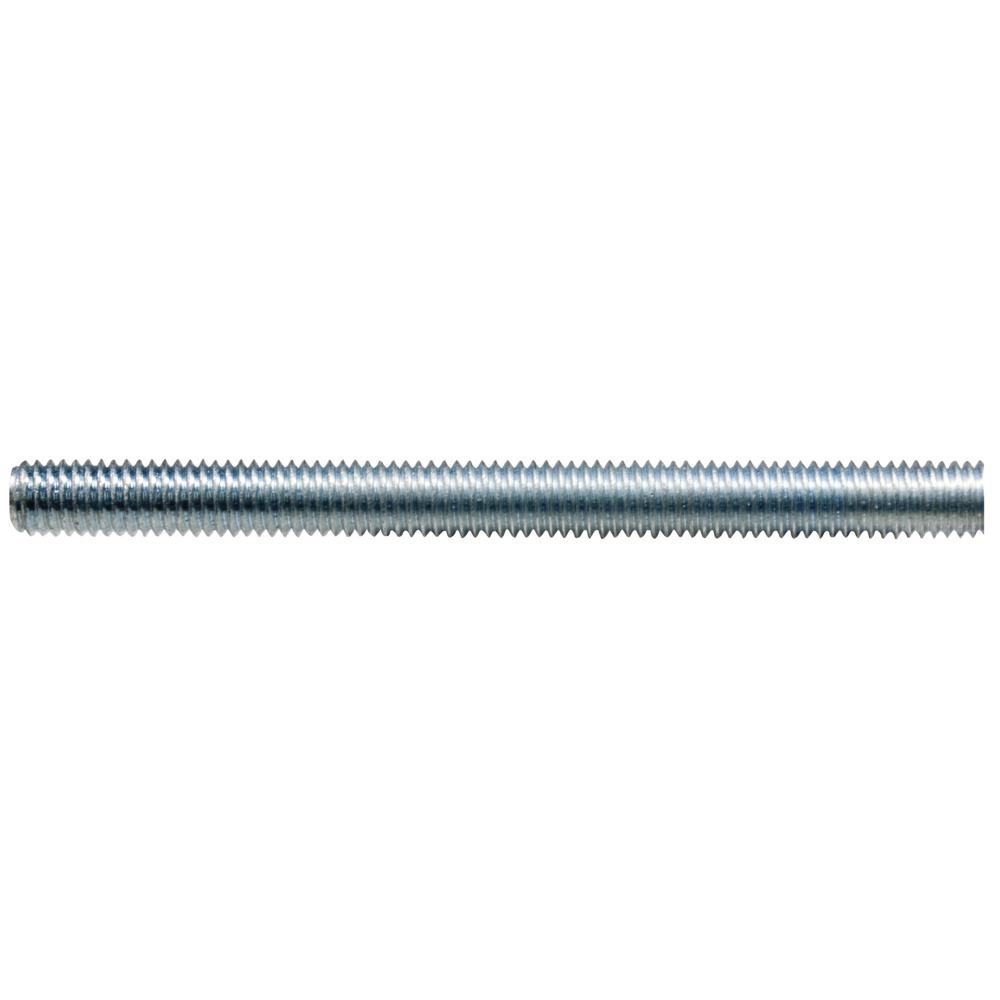

Product Picture
Application Picture
Product Picture
Application Picture
1   1
Variant Art.-No. 509224 fischer Threaded Rod FIS AM 12X1000 gvz 1 m length steel grade 8.8
ETA-approval
Drill diameter 14 [mm]
Packaging Folding-box
Quantity/pack 10 [St.]
GTIN (EAN-Code) 4048962098082
Price / Pack Price : 9345.60 ₹

Product Description

The fischer threaded rod FTR is a cost-effective system component without approval for the fischer resin capsules RSB and RM II and for fischer injection mortars. For single fixations, the application with the pre-portioned resin capsule is particularly cost-effective. The hot-dip galvanised and zinc-plated steel threaded rods enable extremely diverse applications. The system is particularly suitable for cost-effective fixations indoors where no approval is relevant. The FTR is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions. During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated.
Advantages
  • The threaded rod FTR is the cost-effective solution for applications with resin capsules where no approval is required.

Application and Permission

Applications
  • Anchorings with resin capsules without approval
  • Anchorings with injection mortars without approval
Building materials
  • Concrete
  • Natural stone with dense structure

* You can find detailed information on building materials in the registration document.

Permission

  • ETA-02/0024, ETAG 001-5
  • DoP 0188
  • DoP No. 0007
  • DoP No. 0072
  • DoP No. 0094 - EN
  • ESR-3572
For Details see corresponding Documents

Assembly Instruction

Functionality
  • Due to its oblique edge, the threaded rod FTR is particularly suitable for use in conjunction with resin capsules.
  • The threaded rod FTR is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
  • During setting, the oblique edge of the FTR destroys the capsule and mixes and activates the mortar.
  • Use with injection mortar is also possible. Here, the threaded rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.

Technical Data

Technical Data

ETA-approval
Drill diameter 14 [mm]
Packaging Folding-box
Quantity/pack 10 [St.]
GTIN (EAN-Code) 4048962098082
Legend = Permission Available — = Permission not Available

Documents for Downloading

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 4 MB) European Technical Assessment for Injection System fischer FIS V - Bonded anchor for use in concrete ETA-02/0024, ETAG 001-5 13-05-2020
DOP - Declaration of Performance (PDF, 4 MB) DoP 0188 27-05-2020
DOP - Declaration of Performance (PDF, 2 MB) Declaration of Performance fischer Injection resin FIS V, according European Technical Assessment ETA-02/0024 DoP No. 0007 05-02-2015
DOP - Declaration of Performance (PDF, 5 MB) Declaration of Performance fischer Injection resin FIS V, according European Technical Assessment ETA-02/0024 DoP No. 0072 24-06-2016
DOP - Declaration of Performance (PDF, 6 MB) Declaration of Performance fischer Injection resin FIS V, according European Technical Assessment ETA-02/0024 DoP No. 0094 - EN 20-02-2017
ICC-approval (PDF, 1 MB) ESR-3572 30-04-2001 30-04-2021
